Electric Hydraulic Orange Peel Grab Steel Scrap High Wear Resistant Steel
Description
Hydraulic orange peel grab is an efficient tool for loading and unloading sands, coal, mineral powder and bulk chemical fertilizer. It is widely used in wharf, steel mill, recycling depot, garbage incineration treatment plant and so on. It can also be used with tower crane, ship unloader, traveling crane and other kinds of cranes. Equipped with a particular scoop, this electric-hydraulic grab is suitable for grasping block, granular and irregular shape of bulk materials (such as scrap, coke, pig iron, slag, garbage, stone and other bulk materials). Electric-hydraulic grab is installed with hydraulic system, the main components of which adopt the overseas well-known products. This makes the grab own excellent performance.
Features
1. This electric-hydraulic grab is of simple mechanical structure and easy to use.
2. The water-proof design combined with German hydraulic components offers safe, stable and reliable operation and low maintenance.
3. It has strong digging strength and high efficiency of loading and unloading.
4. Scrap grab can work stably under any circumstances.
5. The grab has tie-in on the grab and it is easy to connect to the crane.
Characteristics
1. 360 degree continuous rotation
2. Grapple arms available in either narrow or wide blades for bulky material.
3. Designed for high pressure hydraulic systems.
4. Durable T-1 steel used in construction
5. High torque, internal crossover motor drive.
6. Easily removable guarding for access to all hydraulic components.
7. Large diameter induction harden chrome pins and bushings used in arms and cylinders.
8. High pressure, chrome spool rotary union.
9. Heavy duty 4’’ bolted head hydraulic cylinders.
10. Easy maintenance.
11. Replaceable tine points
The hydraulic orange peel grab of Yetong is
|
Orange peel grabs for iron scrap
|
|
Iron scrap comes in all kinds of forms and shapes. A grabs suitable for shredded scrap will not automatically perform well in heavy melting scrap. Different types of scrap require different types of orange peel grabs.
Guangzhou Yetong has the experience to advise you which grab to select.
|
|
Orange peel grabs for pig iron and stones
|
|
For handling difficult materials like pig iron and stones extra heavy orange peel grabs are required.
To ensure a good penetration and good filling, the grabs have high dead weight.
The spaces between the scales are relative small to minimise the risk of material loss.
|
|
Orange peel grabs for woodchips
|
|
Woodchips are very light and therefore these orange peel grabs have very large volumes.
Volumes up to 60 M3 are possible. The scales are fully enclosed to prevent material loss.
|
Parameter
|
Machine Tonnage
|
Description
|
Number of Tines
|
Weight(kg)
|
Material
|
|
3-5T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
4
|
380
420
|
HARDOX+Q345B
HARDOX+Q345B
|
|
6-10T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
4
|
570
620
|
HARDOX+Q345B
HARDOX+Q345B
|
|
11-16T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
4
|
820
880
|
HARDOX+Q345B
HARDOX+Q345B
|
|
17-20T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
5
|
1080
1180
|
HARDOX+Q345B
HARDOX+Q345B
|
|
21-24T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
5
|
1200
1300
|
HARDOX+Q345B
HARDOX+Q345B
|
|
25-30T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
6
|
1320
1450
|
HARDOX+Q345B
HARDOX+Q345B
|
|
31-35T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
6
|
1450
1600
|
HARDOX+Q345B
HARDOX+Q345B
|
|
36-40T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
6
|
1680
1850
|
HARDOX+Q345B
HARDOX+Q345B
|
|
41-45T
|
Non-rotary Hydraulic Orange Peel Grab
Rotary Hydraulic Orange Peel Grab
|
6
|
1950
2150
|
HARDOX+Q345B
HARDOX+Q345B
|

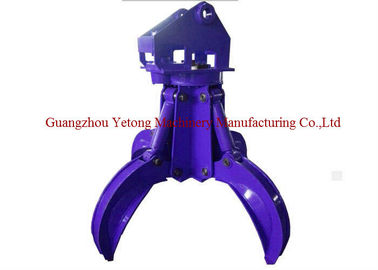

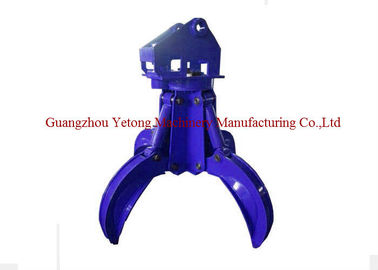

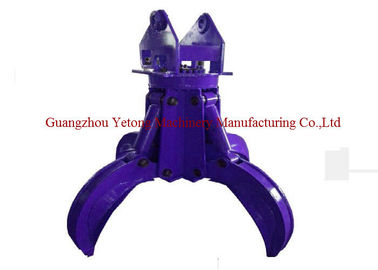

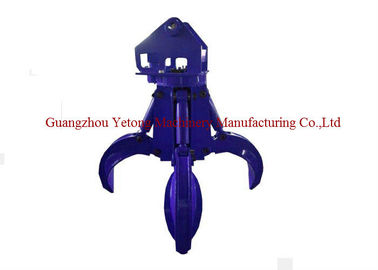

Product image
