PE Plastic Film Film Blowing Machine , polyethylene blown film extruder

Large Image : PE Plastic Film Film Blowing Machine , polyethylene blown film extruder

Product Details:

Place of Origin:	CHINA
Brand Name:	SANBI
Certification:	CE, ISO9001:2000,SGS
Model Number:	SJ-A50/55/65

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	USD6,000 TO USD18,000
Packaging Details:	standard seawothy wooden case/wooden pallet packing
Delivery Time:	within 15 working days
Payment Terms:	T/T, L/C, D/A
Supply Ability:	40 sets /month

Contact Now

Detailed Product Description

Material:	LDPE ,HDPE ,LLDPE	Origin:	China
Certificate:	CE,ISO9001:2000,SGS	Model:	SJ-A50/55/65
Color:	White With Blue	Appliation:	T Shirt Bag Film And Flat Bag Film
Highlight:	plastic Blowing Machinery , blown film equipment

PE Plastic Film Film Blowing Machine , Polyethylene Blown Film Extruder

Spec:

Model	SJ-A50	SJ-A55	SJ-A65	SJ-A65-1
Diameter of screw	φ50	φ55	φ65	φ65
Lay-flat width of film(mm)	100-600	200-800	300-1000	400-1200
Thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. output(kg/h)	35	50	65	80
L/D ratio of screw	28:1	28:1	28:1	28:1
Power of main motor(kw)	11	15	22	22
Power of Traction motor(kw)	1.5	1.5	1.5	1.5
Heating Power(kw)	10	15	20	20
Overall dimension(LWH) (m)	4.81.93.8	5.52.14.6	6.52.35.2	6.5002.55.2
Weight(T)	1.5	2	2.3	2.6

Standard Configure

9	Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated
10	FIXED DIE HEAD DEVICE
11	Gear box: water cooling reducer, hard tooth surface
13	Single winder
14	counter of metric
15	Main motor : CHINESE BRAND ,WITH CHINESE INVERTER
16	Heating ring : cast aluminum
18	Air compressor
19	winder motor : torque motor
20	Embossing roller
21	Gusset device
22	3PASE 380V 50HZ

Use:

This screw and barrel is made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Competitive Advantage:

a. The twenty-seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.

Picture:

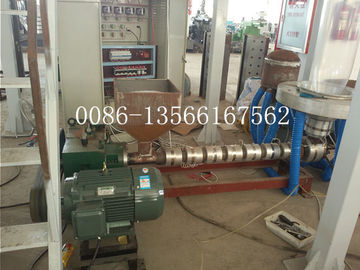

PE Plastic Film Film Blowing Machine , polyethylene blown film extruder 0
